The Art and Science of On-Wing HPC Blade Blend Repairs: A Visual Guide

In the demanding realm of aircraft engine maintenance, addressing damage to High Pressure Compressor (HPC) blades requires a blend of profound technical knowledge, meticulous skill, and unwavering due diligence. While our previous article discussed the broad benefits of on-wing HPC blade blend repairs, this post offers a more focused, visual insight into the precision involved in these critical procedures. For airlines, operators, leasing companies, and MROs, understanding the intricacies of this repair highlights its value in maintaining engine health, ensuring safety, and managing operational costs effectively.

Team Europe Ltd., an EASA and FAA Part-145 approved organisation, prides itself on the exceptional skill of its engineers who perform these delicate on-wing repairs. This visual guide, using images from actual repair work, will walk you through key stages, underscoring the expertise required at every step.

The Challenge: Damage Beyond Limits

Aircraft engines operate in harsh environments, and HPC blades can sustain damage from various sources, including Foreign Object Debris (FOD). When such damage exceeds the Aircraft Maintenance Manual (AMM) limits for continued operation, intervention is necessary. Ignoring such defects can lead to reduced engine efficiency, increased fuel burn, and potentially catastrophic engine failure.

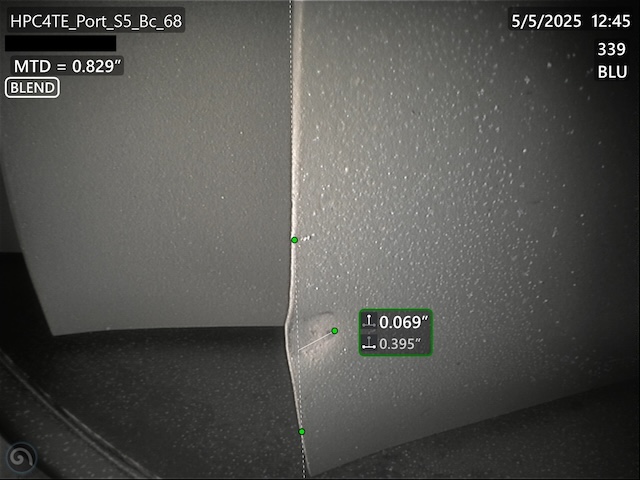

Figure 1. An HPC blade showing a defect (e.g., a significant nick or dent) that is outside the acceptable limits defined in the Aircraft Maintenance Manual, necessitating a blend repair.

This image shows an HPC blade with a noticeable defect. At this stage, a thorough assessment by a qualified engineer is crucial. This involves not just identifying the damage but also understanding its extent and its potential impact on the blade's structural integrity and aerodynamic performance. This initial assessment dictates the feasibility and scope of an on-wing blend repair.

The Repair Process: A Testament to Precision

Once a blade is deemed suitable for an on-wing blend repair, the engineer embarks on a highly precise material removal process. The goal is to smoothly contour the damaged area, removing stress concentrations and restoring an acceptable aerodynamic profile, all while adhering to strict OEM-approved procedures and dimensional tolerances.

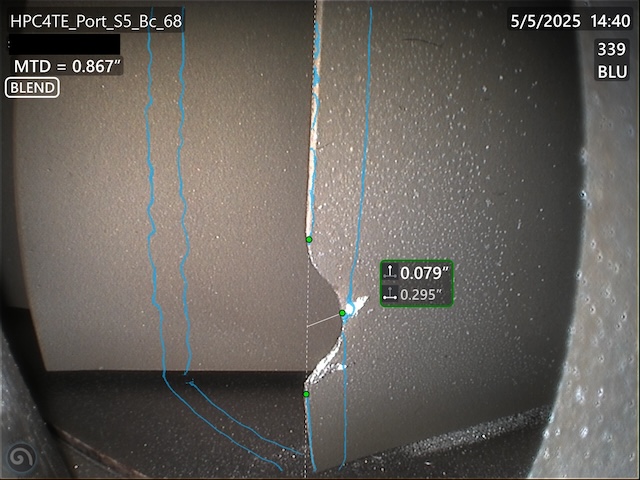

Figure 2. Precision in action: an engineer carefully measures the depth of the material removed during the blend repair to ensure it remains within specified tolerances.

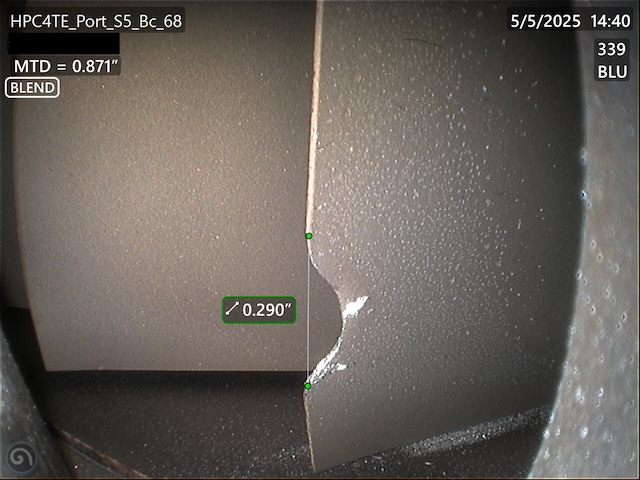

Figure 3. The length of the blended area is another critical parameter, meticulously measured to maintain the blade's aerodynamic balance and structural integrity.

These images (Figure 2 and Figure 3) highlight the due diligence involved. Engineers use specialized, calibrated tooling to perform the blending and to continuously measure the repair dimensions – depth, length, and profile. Every movement is calculated; too little material removed, and the defect might not be fully eliminated; too much, and the blade's integrity could be compromised. This is where the engineer's tactile skill, developed through extensive training and experience, becomes paramount.

The Result: Restored Integrity and Performance

A successful blend repair transforms a damaged, non-airworthy blade back into a serviceable component, ready to perform reliably within the demanding environment of the HPC section.

Figure 4. The completed blend repair, showcasing a smooth, aerodynamically sound surface where the defect once was. The blade is now restored to a serviceable condition.

The smoothly contoured surface seen in Figure 4 is the hallmark of a expertly executed blend repair. This meticulous finish minimizes any potential for stress risers and ensures optimal airflow over the blade surface, contributing to the engine's overall efficiency and performance.

Adherence to Limits: The Non-Negotiable Standard

Throughout the repair process, engineers must work within stringent dimensional limits defined by the engine manufacturer. These limits are established to ensure that the repaired blade retains sufficient structural strength and that its aerodynamic characteristics remain within acceptable parameters for safe and efficient engine operation.

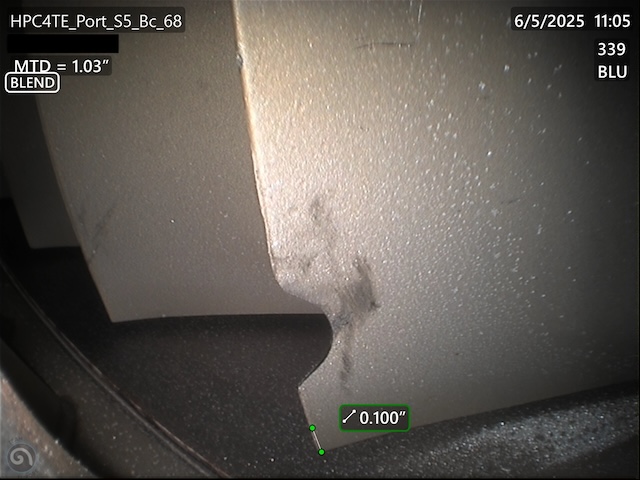

Figure 5. A crucial final check: verifying that the blend repair, particularly near the blade tip, has not exceeded specified dimensional limits, such as the 0.100" maximum allowable material removal from the tip chord in this instance.

Figure 5 illustrates a critical final verification. In this example, the engineer confirms that the repair has not resulted in excessive material removal from the blade tip, ensuring that critical parameters like tip clearance and overall blade profile remain within the certified design limits. This attention to detail and adherence to approved data is a non-negotiable aspect of the due diligence Team Europe Ltd. brings to every task.

The Team Europe Ltd. Difference: Skill, Due Diligence, and Approval

On-wing HPC blade blend repairs are a clear demonstration of how advanced maintenance techniques, when executed with exceptional skill and rigorous due diligence, can deliver significant benefits. These repairs save considerable time and money compared to engine removal and shop visits, reduce aircraft downtime, and extend engine life.

At Team Europe Ltd., our EASA and FAA Part-145 approved engineers are not just technicians; they are highly skilled craftspeople with a deep understanding of engine architecture and materials science. They combine their expertise with state-of-the-art borescopic equipment and precision tooling to perform blend repairs that meet the highest industry standards.

Choosing Team Europe Ltd. means entrusting your valuable engine assets to a team that prioritizes quality, safety, and meticulous attention to detail in every repair, ensuring your aircraft remain airworthy and your operations efficient.
